The 10μm Bare Aluminum Foil can be adopted as cathode current collector. It features primary compatibility with LFP, alongside good adaptability to NCM and NCA materials, catering to applications of long-distance electric vehicles and consumer 3C batteries.
|
Applicable battery |
Lithium ion battery / Sodium ion battery |
|
Alloy |
AA1100, AA1060, AA1235D |
|
Temper |
H18 |
|
Aluminum Foil Thickness |
8-15µm |
|
Coating Thickness |
3µm (single side/double sides) |
|
Aluminum Foil Width |
300-1550mm |
|
Coating System |
Aqueous slurry |
|
Surface tension |
≥56 dyn/cm |
|
Total Surface density |
38.4±1.5 g/㎡ |
|
Coating surface density |
3.0±0.5 g/㎡ |
|
NMP resistance |
Baked at 130 °C for 10 min. Wiping 200 times with NMP, coating remains intact without peeling |

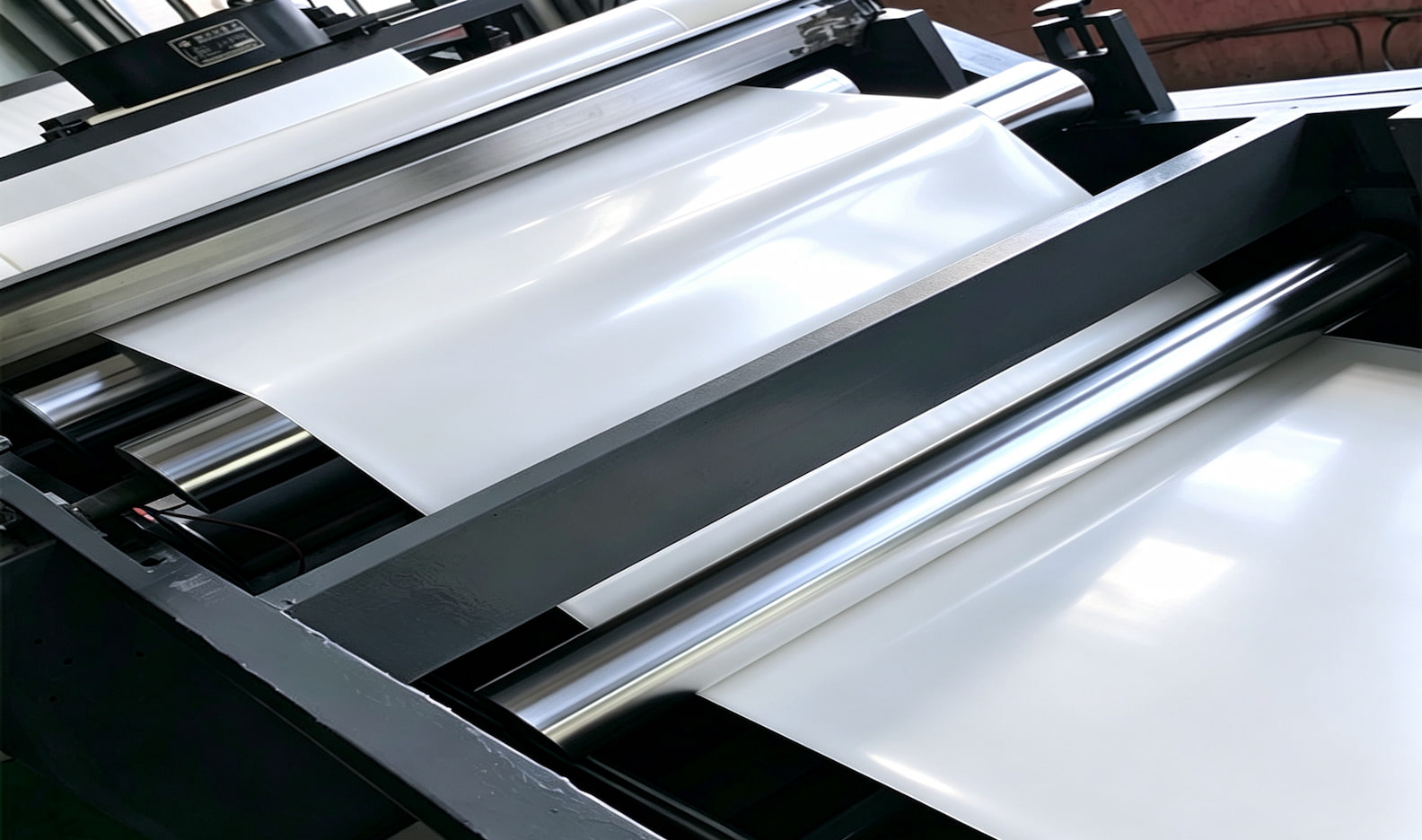

Product Image
Key Bnenefit of 10μm Bare Aluminum Foil
a. Lower Surface Resistance. Enhanced Conductivity Reducing surface resistance to achieve superior conductivity performance.
b. Enhanced Interfacial Adhesion. Improve bonding performance between active materials and current collector substrate.
c. Superior Rate & Fast-Charging Performance. Improve battery rate performance to support efficient fast charging.
d. Excellent Electrolyte Corrosion Resistance. Provides effective protection against electrolyte corrosion to prolong electrode lifespan.
e. Broad Cathode Material Compatibility. Mainly suited for LFP, and supports NCM & NCA materials.
