Carbon Coated Aluminum Foil for Battery Cathode — 11+1+1um Thickness

The 11+1+1um Carbon Coated Aluminum Foil is our company's typical product. It is designed and manufactured for battery cathode current collector use. We apply conductive slurry on the surface of pre-treated aluminum foil to get a better-performing battery aluminum foil. Besides, the properties of our self-researched slurry are strictly controlled and tested to ensure the shelf life and quality of the aluminum foil.

Inquiry Now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Details of 11+1+1µm Carbon-Coated Aluminum Foil

1. Technical Parameters

Applicable Battery	Lithium- ion battery / Sodium-ion battery
Alloy	AA1100, AA1060, AA1235D
Temper	H18
Aluminum Foil Thickness	8- 15 µm
Coating Thickness	0.6- 2 µm (single side/double sides)
Aluminum Foil Width	300- 1550 mm
Coating System	Aqueous slurry
Surface Tension	≥64 dyn/cm
Total Surface Density	33.5-41.5±1 g/m²
Coating Surface Density	0.21-0.7±0.5 g/m²
NMP Resistance	Baked at 130 °C for 10 min. Wiping 200 times with NMP, the coating remains intact without peeling.

2. Key Benefits of 11+1+1µm Carbon-Coated Aluminum Foil

Improve conductivity by reducing surface resistance.
Enhance the adhesion between active material and current collector.
Optimize battery C-rate performance.
Bolster resistance to electrolyte corrosion.
Extremely compatible with LFP (NCM / NCA).

3. Production Equipments

4. Quality Control

5. Packaging

We have three steps of packaging to ensure the product is delivered to the destination without any damage.

Step 1: Using EPE foam to protect the two end faces of the aluminum foil.

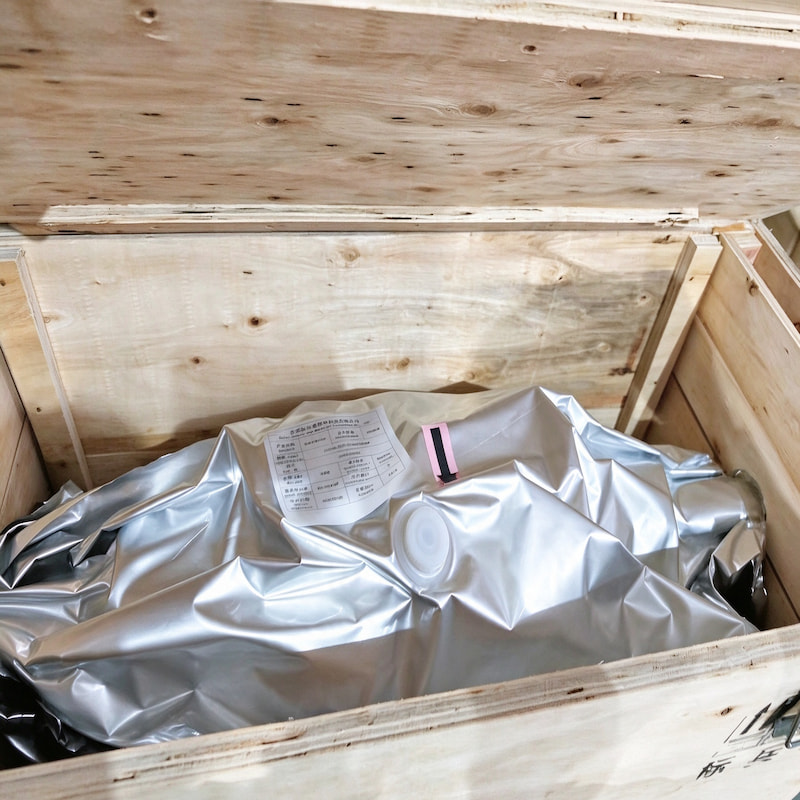

Step 2: Vacuum and package with aluminum-plastic film.

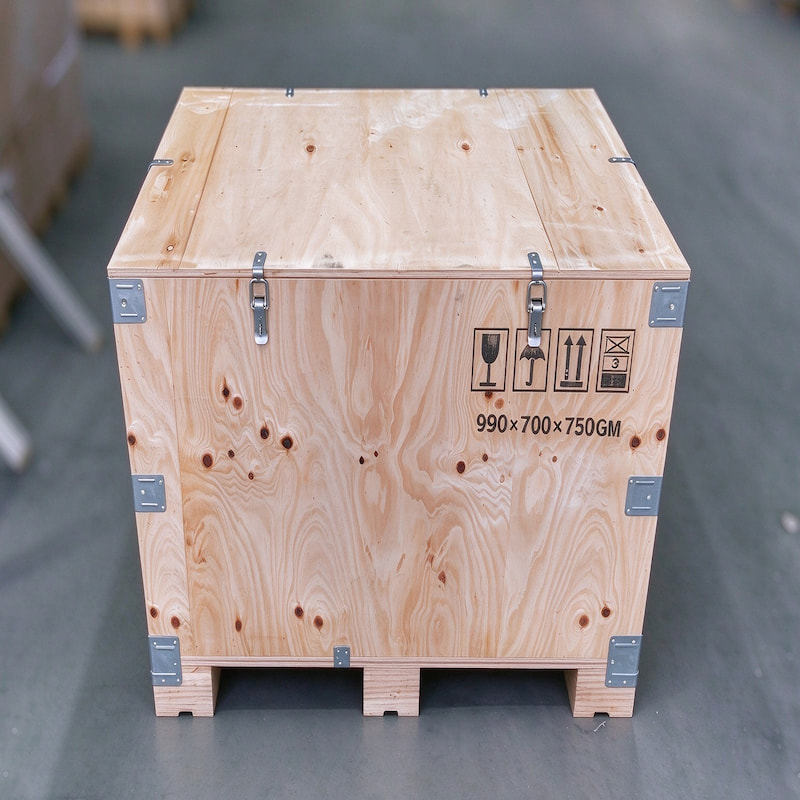

Step 3: Put it in the quick-release wooden case, which is designed for customs inspection. Label affixed on each side of the crate.

6.Q&A

a.What is the minimum order quantity?

The minimum order quantity of our carbon-coated battery aluminium foil is 5,000 kg. No matter what thickness of product it is.

b.Can you customize the packaging?

Yes, we usually use quick-release wooden boxes as outer packaging, and we also accept special-dimension requests for packaging.

c.What price do we pay for a customized sample?

It depends on your customized needs. Different coating sizes result in different quantities of waste materials; therefore, there is some discrepancy in the cost of the sample. Don't worry, all the prices are well-founded.

d.Can products with even thinner thicknesses be customized?

Yes, of course. Besides the thickness scope of 10- 15 micrometres, we have successfully developed and researched thinner versions, which are only 8- 9 micrometres. And we will continue to explore new aluminum foil products with even thinner profiles.

If you need any further information about our battery aluminum foil products, contact us now at: peng@biopin.vip or sristar0615@gmail.com.
