The 12+2+2µm Safety Primer Coating Foil is widely adopted in power batteries, energy storage power batteries, and consumer batteries. It is also compatible with sodium-ion batteries and high-voltage lithium battery systems.
1. Technical Parameters
|
Applicable Battery
|
Lithium-ion battery / Sodium-ion battery
|
|
Alloy
|
AA1100, AA1060, AA1235D
|
|
Temper
|
H18
|
|
Aluminum Foil Thickness
|
12µm
|
|
Coating Thickness
|
2µm (single side/double sides)
|
|
Aluminum Foil Width
|
300-1550mm
|
|
Coating System
|
Aqueous slurry
|
|
Surface Tension
|
≥64 dyn/cm
|
|
Tensile Strenght
|
≥230 MPa
|
|
Enlongation
|
≥3.0 %
|
|
Coating Surface Density
|
4.0±1 g/㎡
|
|
Total Surface Density
|
36.4±2.4 g/㎡
|
|
NMP Resistance
|
Baked at 130 °C for 10 min. Wiping 200 times with NMP, the coating remains intact without peeling.
|
|
Edge Trimming Defect
|
<100μm
|
|
Appearance
|
No dents or depressions, scratches, pinholes, pockmarks, edge notches, tower
shapes, arrows, end face burrs, impact injury; foil material bonding tape.
|
|

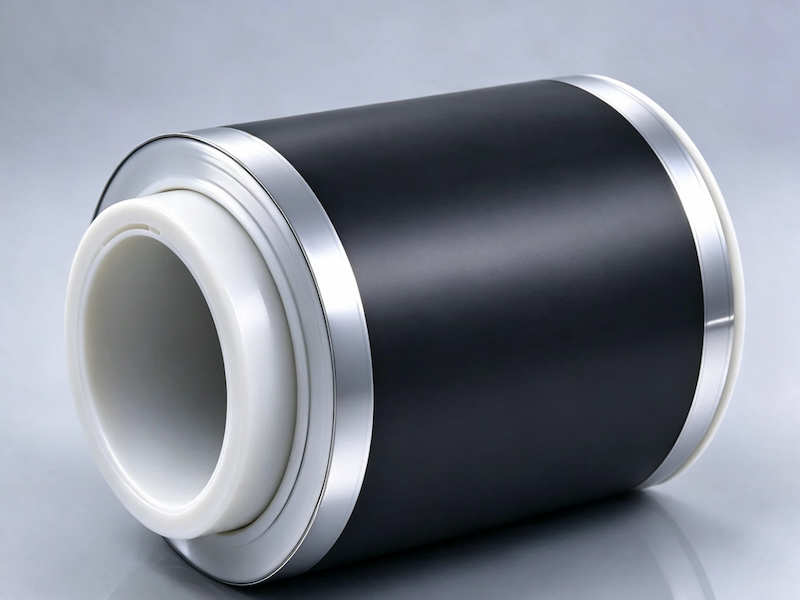

2. Product Image
3. Key Benefits of 12+2+2µm Safety Primer Coating Foil
- Lowers surface resistance, improving high-rate discharge performance.
- Solid electrolyte layer enhances ion transport while reducing side reactions between electrolyte and cathode materials and provides protection against dendrite penetration and external puncture.
- Carbon layer improves flexibility and tear resistance, preventing crack propagation in metal foil.
