High purity battery aluminum foil

12µm High Purity Aluminum Foil

The 12µm High Purity Aluminum Foil is used for batteries ,which undergoes an acidic cleaning process to remove oil residues and impurities during production, with no barrier coating applied. Compared to conventional aluminum foil, it imposes extremely stringent requirements on parameters such as thickness, strength, and surface cleanliness, aiming for the thinnest possible thickness, highest strength, optimal dyna value, and the most pristine surface quality.

Inquiry Now

12µm High Purity Aluminum Foil serves as the mainstream cathode current collector for lithium-ion and sodium-ion batteries, supporting cathode material coating, electron collection and conduction, and is widely applied in power batteries, energy storage systems and consumer electronics cells to comprehensively balance energy density, mechanical strength and cycle life.



  Applicable battery

LiCoO₂ cathodes | NCM / NCA cathode materials | EVand 3C batteries requiring high energy density

Alloy AA1100, AA1060, AA1235D
Temper H18
Aluminum Foil Thickness 8- 20 µm
Aluminum Foil Width 200-1700mm
Surface tension ≥60dyn/cm
Tensile strength ≥230 MPa
Elongation ≥2.5%

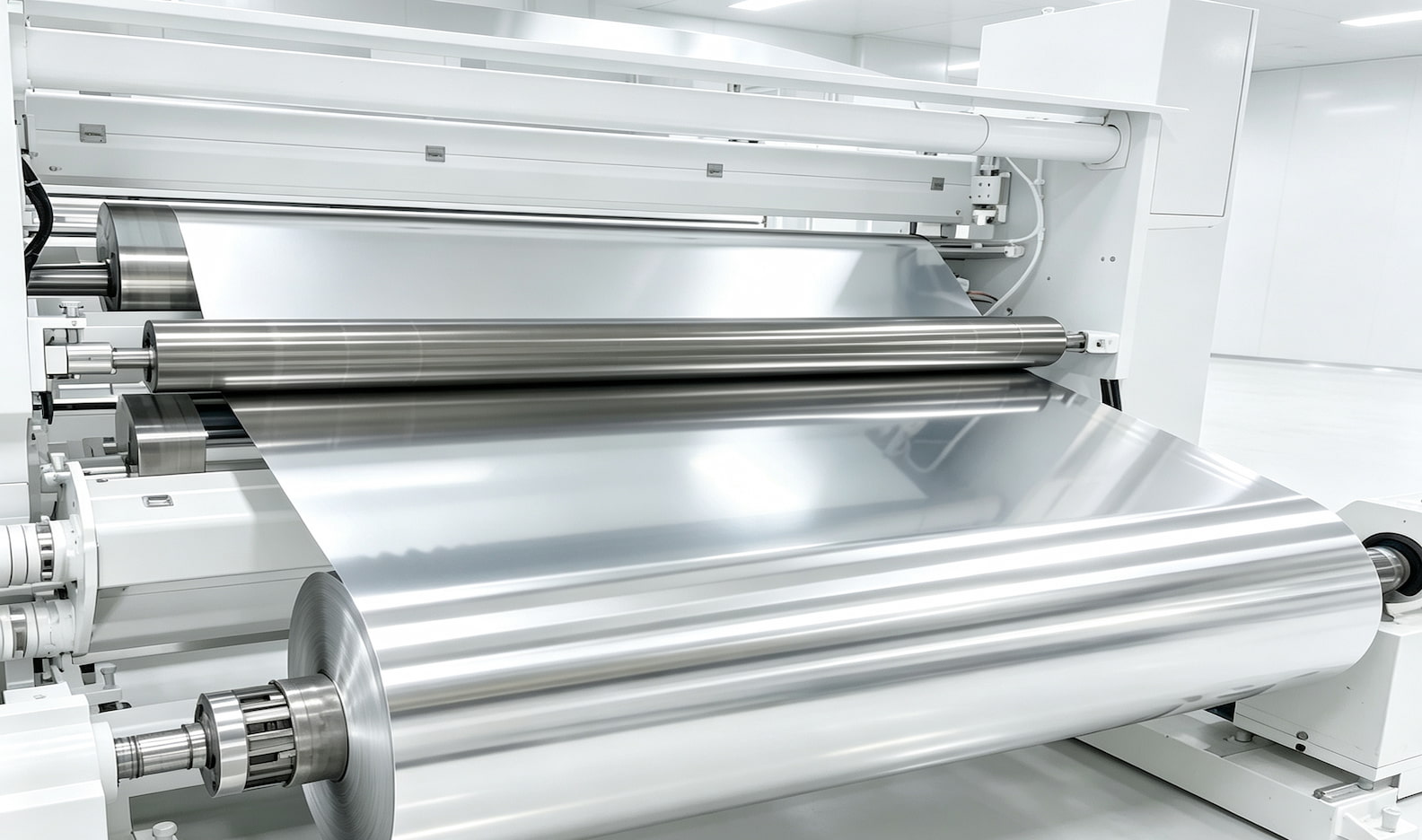

Product Image



Key Bnenefit of 12µm High Purity Aluminum Foil

  1. Lower Resistance. No-leak coating process ensures low resistance and efficient electron transfer.
  2. Higher purity. Precision cleaning removes oil and impurities for stronger material adhesion.
  3. Thinning and lightening. The thickness of positive electrode aluminum foil is only 12 μm. It can reduces the battery’s weight and achieving high energy density, particularly in long-range EV and 3C batteries (mobile phones, laptops).
