The 9μm Ultra Clean Aluminum Foil acts as cathode current collector for lightweight consumer lithium batteries, widely used in smartphones, notebooks, TWS earphones and wearable smart devices.It fits high-energy-density ternary power batteries for lightweight passenger vehicles and small unmanned aerial vehicles, meeting the demand for thin electrode design to boost battery energy density. This high-purity thin foil is also selected for small high-rate supercapacitors and lab-developed sodium-ion batteries, effectively reducing self-discharge caused by surface impurities.
|
Applicable battery
|
LiCoO₂ cathodes | NCM / NCA cathode materials | EVand 3C batteries requiring high energy density
|
|
Alloy
|
AA1100, AA1060, AA1235D
|
|
Temper
|
H18
|
|
Aluminum Foil Thickness
|
8- 20 µm
|
|
Aluminum Foil Width
|
200-1700mm
|
|
Surface tension
|
≥60dyn/cm
|
|
Tensile strength
|
≥230 MPa
|
|
Elongation
|
≥2.5%
|
|

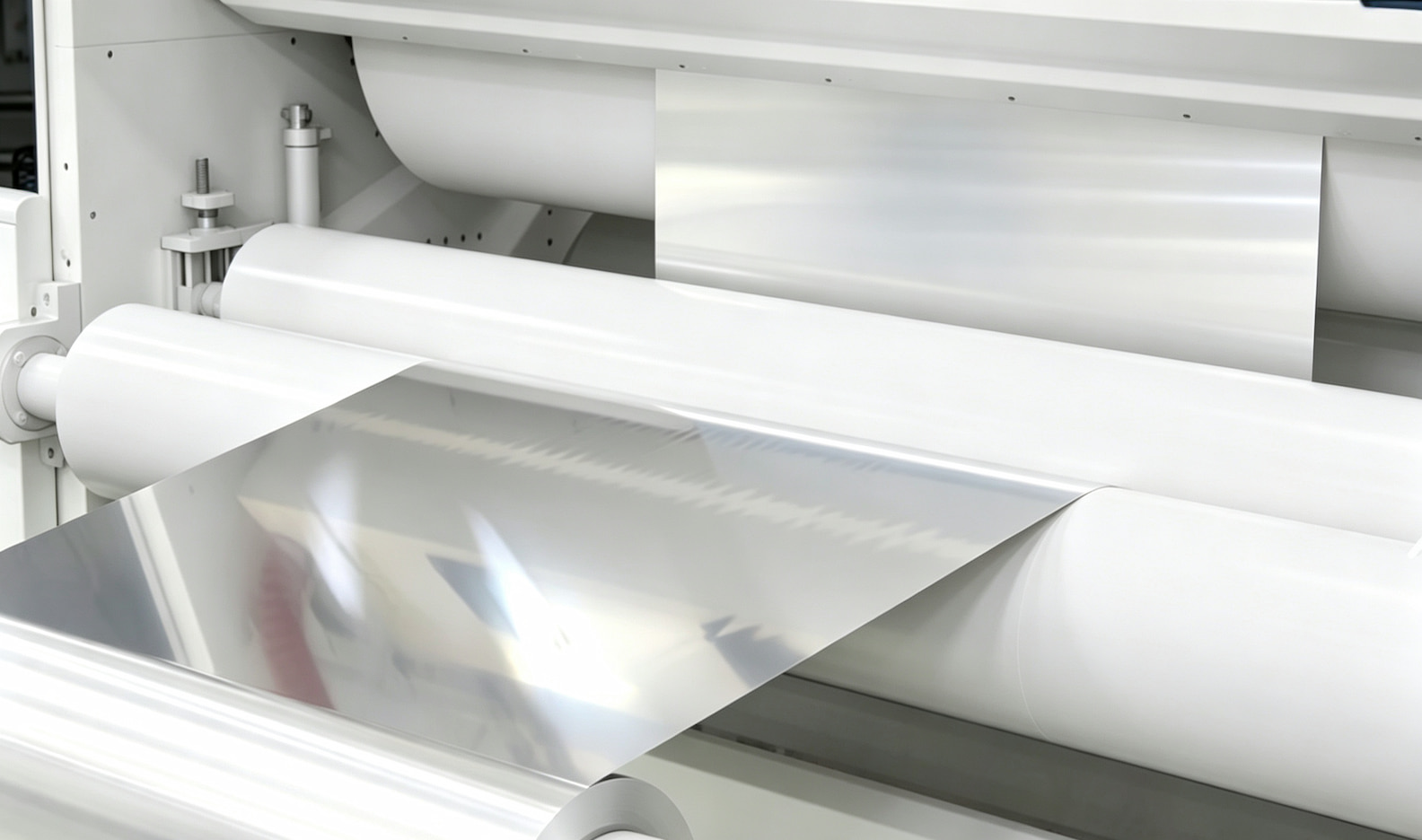

Product Image
Key Bnenefit of 9μm Ultra Clean Aluminum Foil
- Reduced Surface Resistance. The non-leak coating procedure effectively cuts interfacial resistance and facilitates high-efficiency electron transmission.
- Superior Purity Grade. Precise surface cleaning strips residual oil and contaminants, optimizing the adhesion performance of electrode coatings.
- Thinner & Lighter Substrate. The conventional thickness of cathode aluminum foil ranges from 12 to 16 μm, while the upgraded version reaches 9 μm. It effectively lowers battery weight and improves energy density, which is highly suitable for long-distance electric vehicles and consumer electronics such as mobile phones and notebooks.
