13+1+1µm Carbon Coated Battery Aluminum Foil

13+1+1µm Carbon-Coated Battery Aluminum Foil is commonly used as the cathode current collector for batteries, it is manufactured by coating double conductive slurry on the surface of pre-treated aluminum foil; It delivers reduced resistance, superior active material adhesion, alongside oxidation and corrosion resistance, which prolongs battery cycle life and enhances cell safety.

Inquiry Now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Details of 13+1+1µm Carbon-Coated Battery Aluminum Foil

1. Technical Parameters

Applicable battery	Lithium- ion battery / Sodium ion battery
Alloy	AA1100, AA1060, AA1235D
Temper	H18
Aluminum Foil Thickness	8-15µm
Coating Thickness	0.6-2µm (single side/double sides)
Aluminum Foil Width	300-1550mm
Coating System	Aqueous slurry
Surface tension	≥64 dyn/cm
Total Surface density	33.5-41.5±1 g/m²
Coating surface density	0.21-0.7±0.5 g/m²
NMP resistance	Baked at 130 °C for 10 min. Wiping 200 times with NMP, coating remains intact without peeling

2. Key Benefits of 13+1+1µm Carbon-Coated Battery Aluminum Foil

Diminish surface resistance
Elevate current-bearing capacity
Bolster adhesive performance
Promote the battery’s anti-degradation characteristics
Increase corrosion resistance towards electrolyte

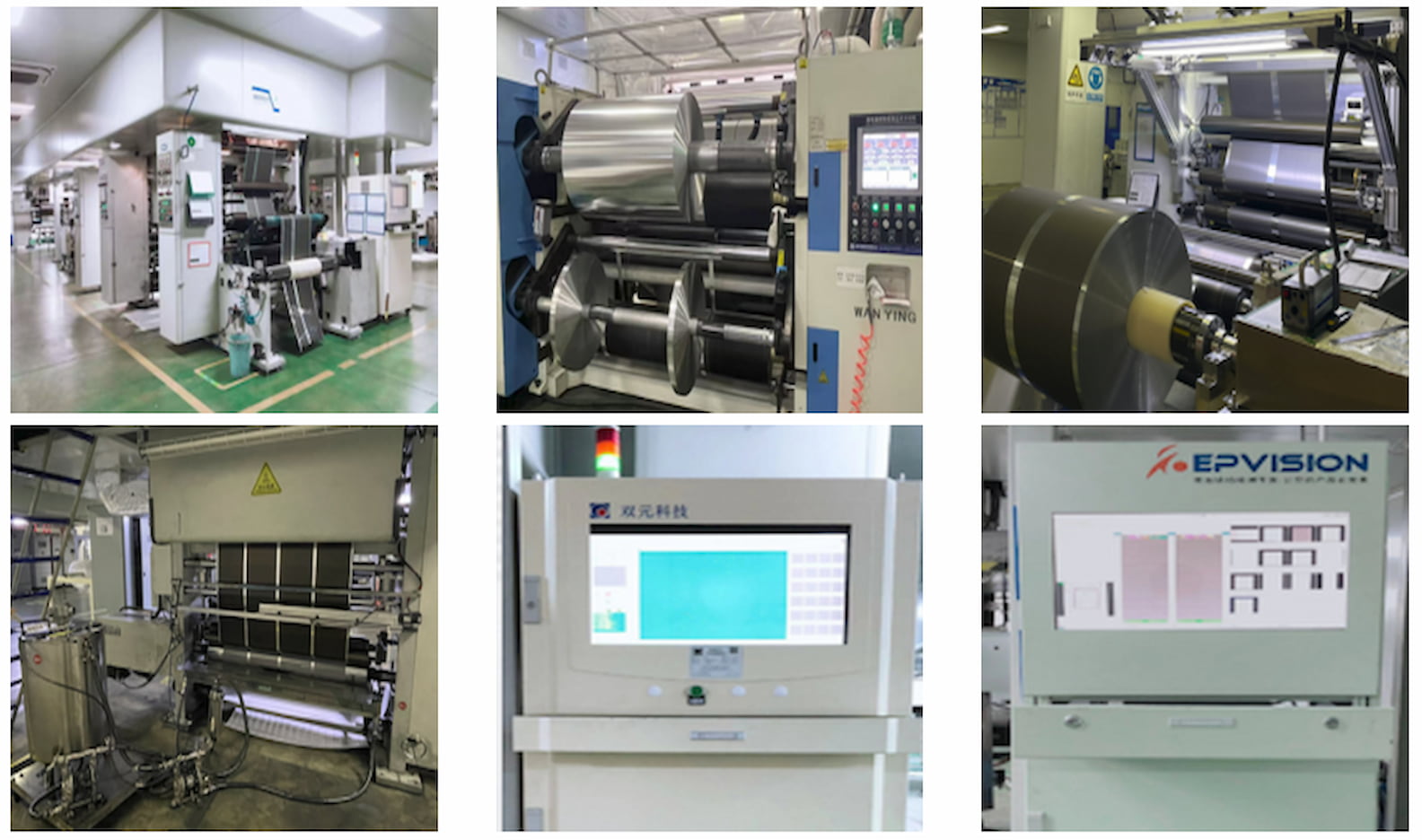

3. Production Equipments

4. Quality Control

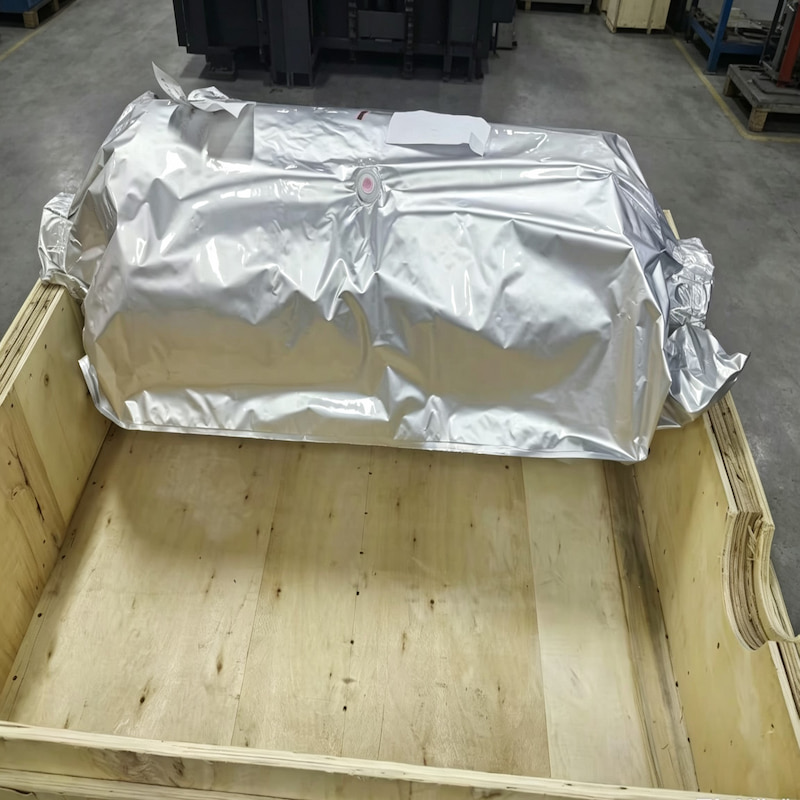

5. Packaging

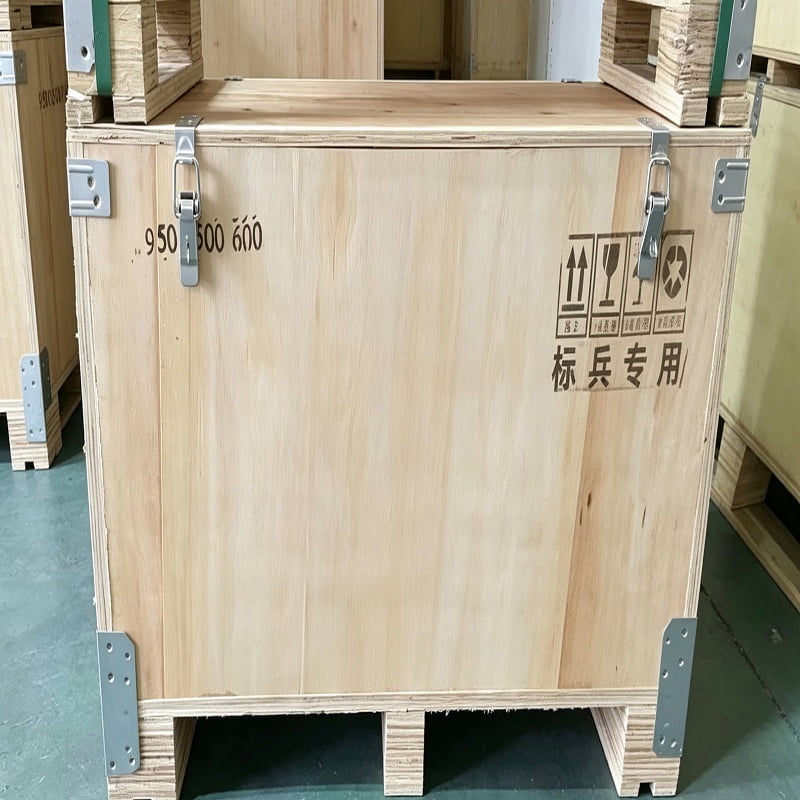

The quick-release wooden case is designed for customs inspection.

Vacuum packaging with aluminum plastic film.

The two end faces of the aluminum coil are protected by EPE foam.

6.Q&A

a.What is the minimum order quantity?

The minimum order quantity is 5,000 kg.

b.Can you customize the packaging?

Yes, we usually use wooden boxes as outer packaging, but we also accept special dimension requests for packaging.

c.What price do we pay for a customized sample?

It depends on your customized needs. In case of different coating sizes causing different quantities of waste materials, we have to calculate the sample's cost price carefully. Don't worry, the price will also be fair.

d.Can products with even thinner thicknesses be customized?

Yes, of course. Actually, in addition to single zero foil (10 -15 micrometre), we have developed thinner versions with reduced thickness, which are only 8 - 9 micrometre. Furthermore, we will continue to develop products with even thinner profiles.
