12+0.8+0.8 Battery Cathode Collector Carbon Coated Aluminum Foil

12+0.8+0.8 Battery Cathode Collector Carbon Coated Aluminum Foil is a composite material made from pure aluminum foil substrate with a conductive carbon layer applied on the surface through gravure coating. Widely adopted as the positive electrode current collector for lithium-ion batteries, it lowers interfacial contact resistance, strengthens bonding between conductive active materials and the substrate, inhibits aluminum foil oxidation and corrosion, delivers more consistent cell performance, prolongs battery cycle life and boosts overall safety.

Inquiry Now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

12+0.8+0.8 Battery Cathode Collector Carbon Coated Aluminum Foil is suitable for various battery systems including power batteries, energy storage batteries and 3C consumer batteries, working to extend the battery cycling life and improve the performance of high-rate charge/discharge performance.

Applicable battery	Lithium ion battery / Sodium ion battery
Alloy	AA1100, AA1060, AA1235D
Temper	H18
Aluminum Foil Thickness	8-15µm
Coating Thickness	0.6-2µm (single side/double sides)
Aluminum Foil Width	300-1550mm
Coating System	Aqueous slurry
Surface tension	≥64 dyn/cm
Total Surface density	33.5-41.5±1 g/㎡
Coating surface density	0.21-0.7±0.5 g/㎡
NMP resistance	Baked at 130 °C for 10 min. Wiping 200 times with NMP, coating remains intact without peeling

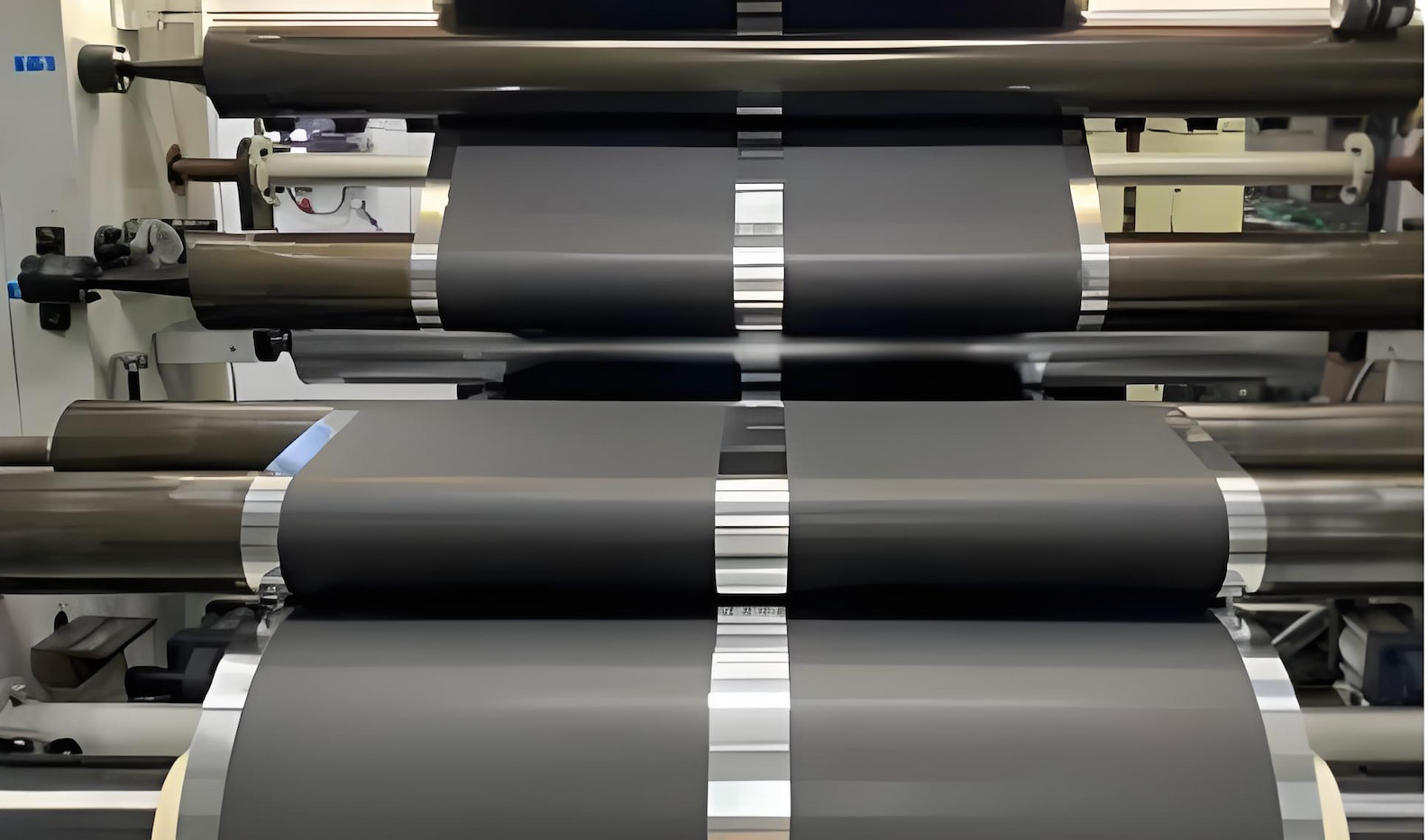

Product Image

New Energy Battery Aluminum Foil

Key Benefit of 12+0.8+0.8 Battery Cathode Collector Carbon Coated Aluminum Foil

Double-sided conductive coating reduces internal resistance
Optimizes adhesion of active materials to current collectors
Improves high-rate charge/discharge performance and extend battery 's cycle life
Good performance under high-temperature working condition
Compatible with kinds of electrolytes .
